Tilting Fridge Slides

Alu-Cab’s Tilting Fridge Slide operates as a straight pull-out slide, and it has the option to tilt. This means you have the advantage of a fridge slide that runs on stainless steel runners with sealed stainless-steel bearings. This product offers maximum strength with the ability to carry greater loads, with greater resistance to dust and harsh off-road conditions.

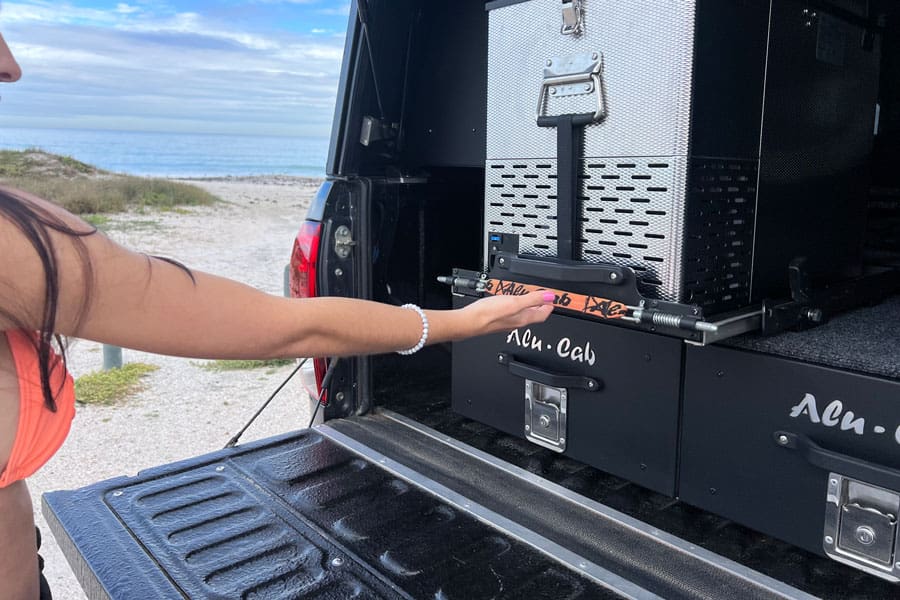

With double-locking pins, it is secured firmly in place when locked in position –  with no risk of the fridge slide breaking free when the road gets rough. Includes stainless pin locating bush, added to the front of the slide to prevent any rattling. The base has slots to allow for strapping down a fridge securely.


Choose from 4 different sizes that are suitable to most fridges.


Product Enquiry Find a Dealer

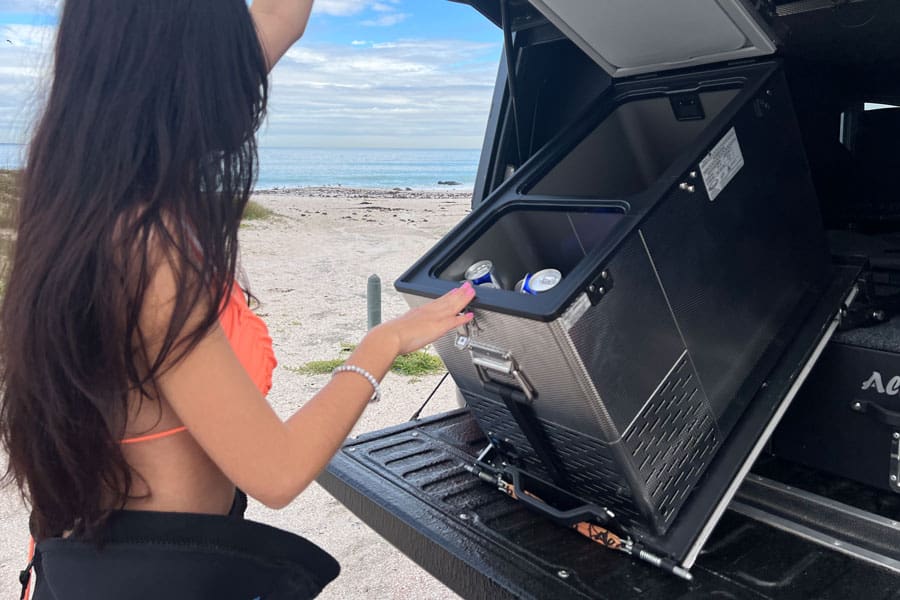

The fridge slide allows easier access when the fridge is positioned at height. It also helps to clear the canopy or back doors when there isn’t space to open the lid. Built from both Stainless Steel and Aluminium, this tilting fridge slide offers good strength without adding excessive weight.


We have built our Tilting Fridge Slide out of a combination of 6061 aluminium and 3CR12 stainless steel



Dimensions and Weight:

Tilting Fridge Slide 1 DS-TFS-50

External dimensions: 782mm x 525mm

Usable dimensions: 720mm x 440mm


Tilting Fridge Slide 2 DS-TFS-60

External dimensions: 863mm x 585mm

Usable dimensions: 800mm x 500mm


Tilting Fridge Slide 3 DS-TFS-80

External dimensions: 963mm x 635mm

Usable dimensions: 900mm x 550mm


Tilting Fridge Slide 4 DS-TFS-95

External dimensions: 1013 x 629 x 113 mm (L x B x H)

Usable dimensions: 950 x 550 mm (L x B)
